Technical Specification

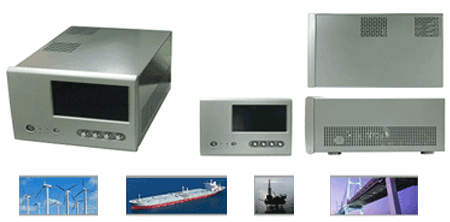

FBG Interrogator degined for Laboratory Application, Maximum 3Ch Optic Connector,
40nm Scan Range.
|
1) Optical
- Optical Channel : 3Ch.
- Wavelength Range : 1525 ~ 1565nm
- Wavelength Stability : < ±5pm
- Wavelength Repeatability : ±1pm
- Scan Frequency : 500 ~ 10KHz*
|
3) Mechanical
- Dimension : 400 x 265 x 215
- Weight : 5Kg
|
2) Electrical
- OS : Windows XP, RTOS
- Input Power : 12V DC, 300W
- Port : RS232, TCP/IP, USB, VGA
|
4) Environment
Operating Temperature : 0℃to ~50℃
Storage Temperature : -20℃to +80℃
|
|
* : Customer Order per Application.
|
