Technical Specification

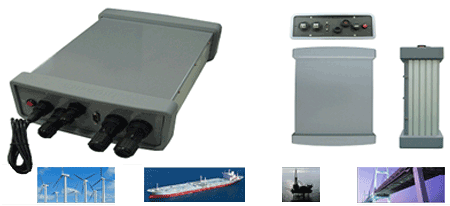

FBG Interrogator degined for Field Application 3Ch Optic Connector,
40nm Scan Range, Waterproof Case for harsh environment.
|
1) Optical
- Optical Channel : 3Ch.
- Wavelength Range : 1525 ~ 1565nm
- Wavelength Stability : < ±5pm
- Wavelength Repeatability : ±1pm
- Scan Frequency : 100Hz
|
3) Mechanical
- Dimension : 370 x 250 x 100 nm
- Waterproof : IP65
- Weight : 5Kg
|
2) Electrical
- Operation System : TROS
- Input Power : 12V DC Power
- Port : RS232/CAN, TCP/IP, USB
|
4) Environment
Operating Temperature : 0℃to ~50℃
Storage Temperature : -20℃to +80℃
|
